Sonelastic® System for large samples

For the non-destructive elastic moduli and damping characterization of materials at room temperature using the Impulse Excitation Technique in accordance with ASTM E1876 and C215 standards.

Sonelastic® System for large samples of grading wood beams.
Sonelastic® System for large samples grading wood beams.

System general specifications:

  • Young's modulus range: from 0.5 to 900 GPa.
  • Frequency range: from 20 Hz to 96 kHz.
  • Vibration modes: flexural, torsional and longitudinal.
  • Dimensions range: from 120 mm (~ 4 ¾ inches) to 5.3 m (~17.4 feet):.
  • Geometries: square cross-sectioned cylinders and bars.

  • Square cross-section bars
    • Width and thickness (A): from 20 to 200 mm.
    • Length (L): from 120 to 5.300 mm.
    • Aspect ratio: L/A ≥ 3.
  • 1
  • 2
  • 3

Items of this System:

  • 01 Sonelastic® Software license with free update for 5 years. (Catalog, page 12).
  • 01 Desktop computer Dell Inspiron or equivalent with Windows 10 Pro.
  • 01 SA-AG, adjustable support for large samples (Catalog, page 06).
  • 01 Manual impulse device (medium) (Catalog, page 09).
  • 01 CA-DP, directional acoustic sensor (Catalog, page 10).
  • 01 Adjustable and sturdy tripod for the Acoustic Sensor (Catalog, page 11).
  • Installation and operation manuals in English.
  • Shipping and training.

Prices:

Basic System: USD 5,500.00
    Items of the Basic System:
  • 01 Sonelastic® Software license with free update for 5 years. (Catalog, page 12).
  • 01 SA-AG, adjustable support for large samples (Catalog, page 06).
  • 01 Manual impulse device (medium) (Catalog, page 09).
  • 01 CA-DP, directional acoustic sensor (Catalog, page 10).
  • 01 Adjustable and sturdy tripod for the Acoustic Sensor (Catalog, page 11).
  • Installation and operation manuals in English.
  • Shipping and training.
System with all optional items: USD 6,950.00
    Optional items:
  • 01 Desktop computer Dell Inspiron or equivalent with Windows 10 Pro.
  • Shipping, installation and in loco training (travel expenses not included).

Commercial conditions:

  • Shipping time: Within 30 days after purchase order.
  • Payment: In advance before shipping by wire transfer.
  • Freight costs: Customer expense.
  • INCOTERMS: FOB Ribeirão Preto, Brazil.
  • Warranty: 02 year.


Discover the Sonelastic® Systems:
Sonelastic® system for small samples
Sonelastic® system for medium samples
Sonelastic® custom system and quote

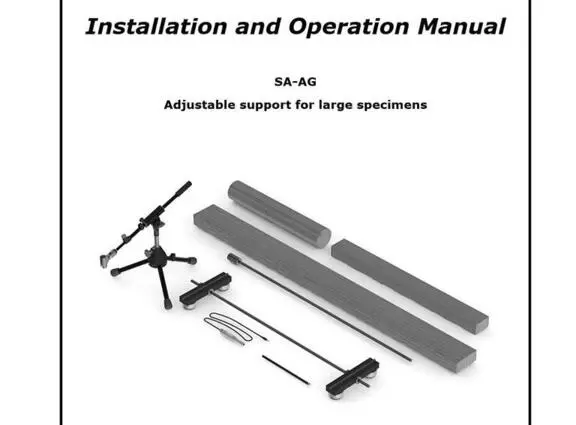

SA-AG Support Manual
